X-Ray 6600 OR & X-Ray Table
Intend of use
The X-Ray 6600 is designed to be used for OR and X-ray examination using a mobile Dr C-arm unit or ceiling-mounted DR C-arm. The X-Ray 6600 has battery supplied motorized adjustable working height and Trendelenburg +- and Tilt +- movement +-15dg. single suspended carbon fiber plate with a radiolucent area of 160x56cm, which making it perfect for OR, endoscopy, gastroscopy, colonoscopy, radiology, and pain clinics, X-ray examination.
Technical data
- Carbon Fiber Tabletop 210x56cm
- Battery supplied Motorized adjustable working height 70-110cm

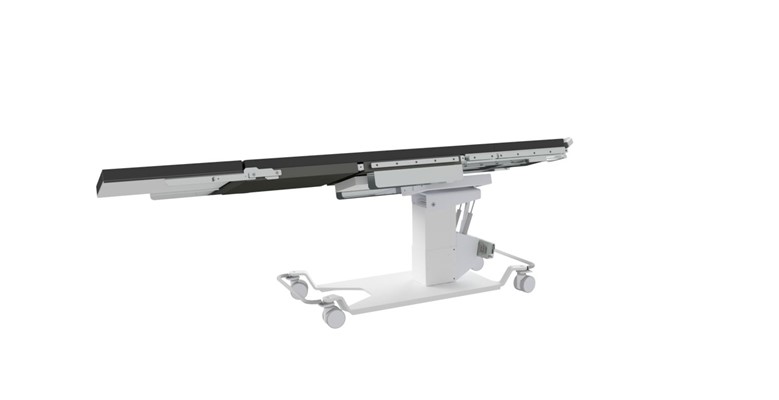

- Battery supplied Motorized Trendelenburg +- 15dg
- Battery supplied Motorized Transversal tilt +- 15dg
- Battery supplied Motorized Longitudinal movement 400mm

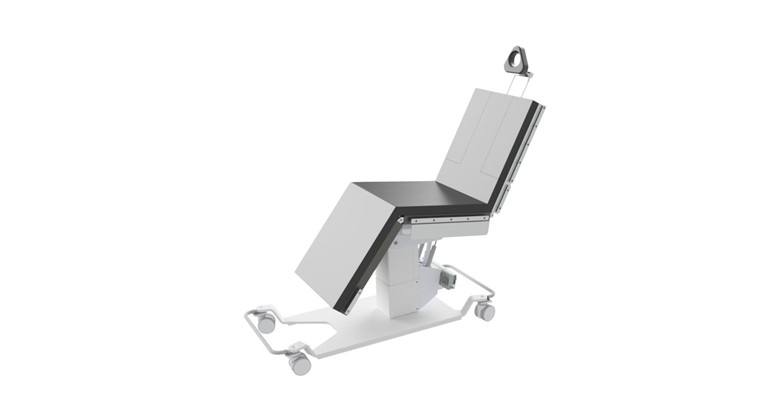

- Battery supplied Motorized Backrest +70/-40
- Battery supplied Motorized Leg support +60/-90dg
- Removeable X-Ray transparent tabletop extension 50cm

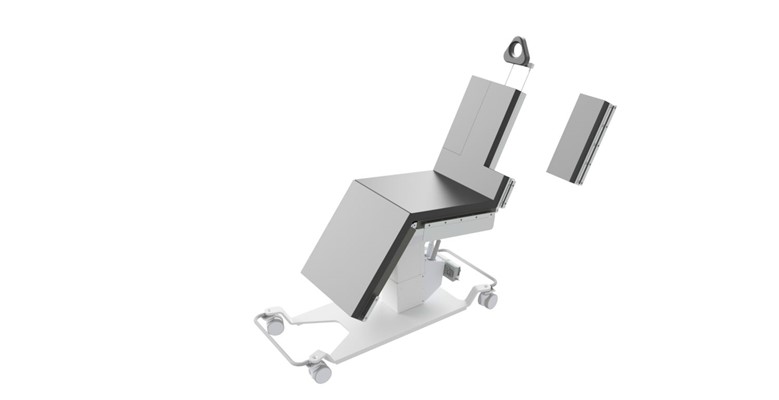

- Removeable parts of backrest for shoulder surgery
- 2 wheels and hanger with free and brake, mounted in front and back on the lower frame
- Extra battery and a wall charger. Battery capacity app. 70times working height up/down with 100kg load
- Hand controller panel
- Patient weight op to 250KG
- CE marked
- Made in Denmark
