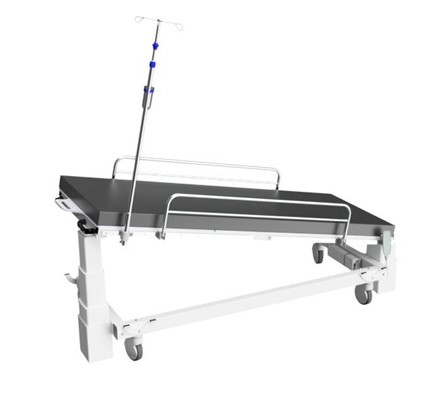

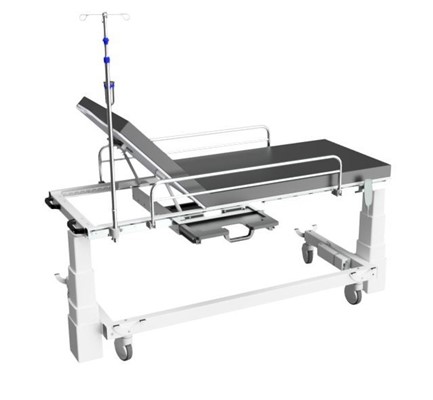

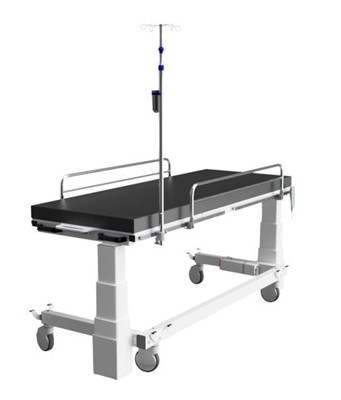

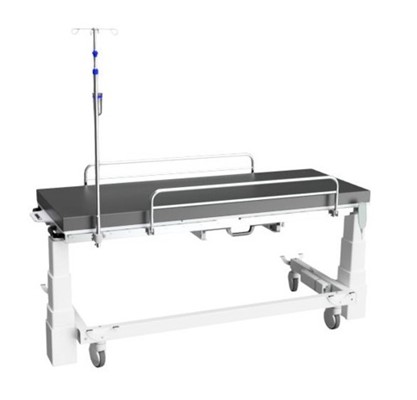

Gaby 01-650 Trauma and X-Ray table
Intend of use
The X-Ray 01-650 with 65cm wide tabletop, is intended as a mobile trauma and radiography table for use in hospitals and medical clinics.
Technical data
- Dimension: 200 x 65 x 50/90 cm.
- Tabletop: Fiber tabletop 200 x 65 cm.
- Movement: Battery supplied motorized adjustable working height 50 – 90cm and Trendelenburg +- 12dg.
- Wheels & Brakes: 150mm Wheels with triple-function foot brake, total lock, free-and direction lock, all wheels can be controlled from both sides.
- Materials frame: Stainless steel, Aluminium, Steel
- Frame: Powder painted off white
- Maximum load: 250kg.
- Total weight ex. Load: 75kg
- CE approved
- Manufactured in Horsens Denmark
The X-Ray 01-650 is a high-performance trauma and radiography table designed for hospitals and clinics that require a robust, radiolucent, and easily maneuverable platform for acute patient handling and diagnostic imaging. A strong chassis combined with large wheels featuring central control (free, brake, and directional lock) ensures full mobility throughout the department. The X-Ray 01-650 is built for environments where equipment must follow the workflow, not slow it down.
Battery supplied motor columns height adjustment provides optimal working ergonomics for staff, while the fully radiolucent tabletop enables imaging without unnecessary patient transfers. The table can be configured with multiple options to support a wide range of clinical workflows — from general X-ray to trauma care and select interventional procedures.
In short: a dependable clinical companion that moves lightly but works hard.
