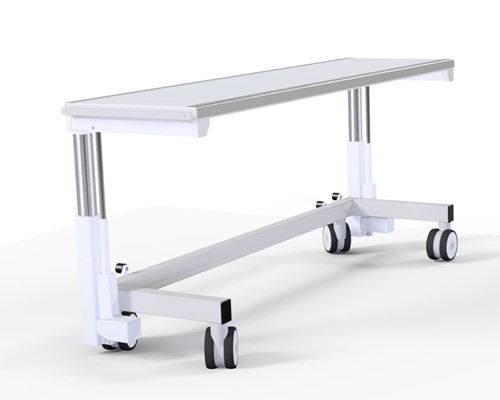

X-ray 2820 Fiber table

Intend of use

The intended use of the X-ray 2820 Carbon Fiber Table is to bring a patient to X-ray examination for endoscopy, colonoscopy, radiology, and pain clinics. 56cm wide tabletop.

Options

  • Folding Safety Side guards
  • Drip stand / IV Pole
  • Mattress 3 or 5 cm w. handles
  • Positioning handles
  • Paper roll holder
  • Carbon fiber arm support
  • CPR support
  • Hydraulic adjusted working height.

Technical data

  • Dimension: 216 x 65 x 95cm
  • Maximum load: 250 kg.
  • Total weight ex. load: 75 kg.
  • Tabletop:
    Fiber 200 x 56 cm.
  • Materials frame: Stainless steel, Aluminium, Steel)
  • Surface: Powder painted off white
  • Movement:
    Motorized adjusted working height from 65 to 95 cm.
    Trendelenburg +/- 8,5 dg
  • Power: Battery powered (fully portable), 230V
  • Capacity: 50 times up and down with a fully charged battery and 100kg load.
  • Wheels & Brakes: 150mm wheels with triple-function foot brake, total lock, free- and direction lock, all wheels can be controlled from one side.
  • CE approved.
  • Manufactured: Horsens, Denmark
  • On board 24V interchangeable battery for tabletop movements
