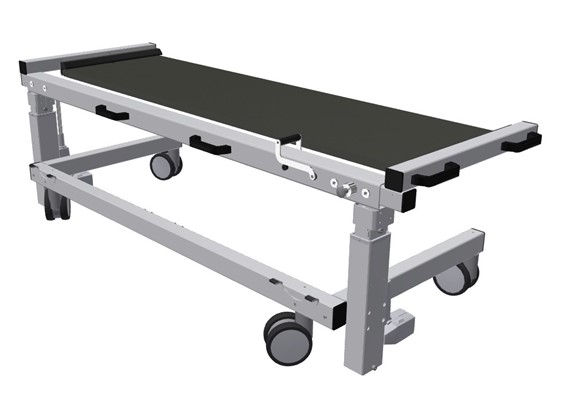

LiGo 100 CT Trolley SE
Intend of use
The intended use of the LiGo 100 CT Trolley SE table is to bring a patient to the CT scanner and to lift the trolley carbon fiber tabletop including the patient up onto the CT scanner table, with entrance from the side.
![](/media/1556/1ligo-100-00-high.jpg?width:500&height=400&mode=crop)
![](/media/1557/2ligo-100-00-low.jpg?width:500&height=400&mode=crop)
![](/media/1558/3ligo-100-00-trendelenburg1.jpg?width:500&height=400&mode=crop)
![](/media/1559/4ligo-100-00-trendelenburg2.jpg?width:500&height=400&mode=crop)
![](/media/1560/5ligo-100-00-low.jpg?width:500&height=400&mode=crop)
![](/media/1766/ligo-300-00-mri-angio-demo-081123-03.jpg?width:500&height=400&mode=crop)
![](/media/1767/ligo-300-00-mri-angio-demo-081123-02.jpg?width:500&height=400&mode=crop)
![](/media/1768/ligo-300-00-mri-angio-demo-081123-01.jpg?width:500&height=400&mode=crop)
![](/media/1769/ligo-300-00-mri-angio-demo-081123-00.jpg?width:500&height=400&mode=crop)
![](/media/1770/ligo-300-00-mri-angio-demo-081123-05.jpg?width:500&height=400&mode=crop)
Technical data
- Dimension: 235x89x60/95
- Maximum load: 250 kg.
- Total weight ex. load: 75 kg.
- Tabletop:
Carbon fiber 200 x 56 cm.
Fully portable transfer board - Materials frame: Stainless steel, Aluminium, Steel)
- Surface: Powder painted off white
- Movement:
- Motorized adjusted working height from 65 to 100 cm.
- Trendelenburg +/- 10 dg
- Power: Battery powered (fully portable), 230V
- Wheels & Brakes: 150mm wheels with triple-function foot brake, total lock, free- and direction lock, all wheels can be controlled from one side.
- Capacity: 50 times up and down with a fully charged battery and 100kg load
- CE approved.
- Manufactured: Horsens, Denmark
