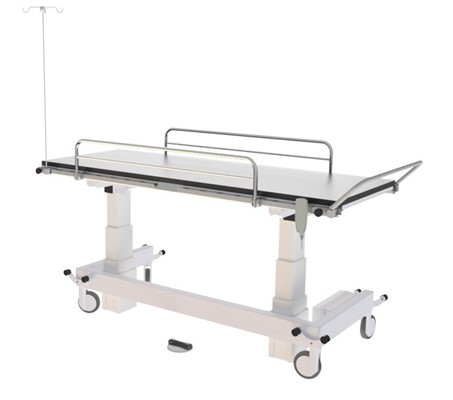

Grace 800 MET X-ray table

Intend of use

The intended use of the Grace 650 MET X-ray table is as a multi-examination table to be used in endoscopy, colonoscopy, radiology, and pain clinics. Floating tabletop 80cm Longitudinal 30cm Transversal .

Options

  • Folding Safety Side guards
  • Drip stand / IV Pole
  • Mattress 3 or 5 cm w. handles
  • Positioning handles
  • Paper roll holder
  • Carbon fiber arm support
  • Additional back-up battery with wall charger

Technical data

  • Dimension: 200 x 80 x 60/100cm
  • Maximum load: 250 kg.
  • Total weight ex. load: 135 kg.
  • Tabletop:
    Floating X-ray transparent tabletop with electromagnetic locks, 80cm Longitudinal 30cm Transversal
    X-ray transparent area: 197 x 65 cm
  • Materials frame: Stainless steel, Aluminium, Steel)
  • Surface: Powder painted off white
  • Movement:
    Motorized adjusted working height from 60 to 100 cm.
    Trendelenburg +/- 10 dg
  • Power: Battery powered (fully portable), 230V
  • Capacity: 50 times up and down with a fully charged battery and 100kg load
  • Wheels & Brakes: 150mm wheels with triple-function foot brake, total lock, free- and direction lock, all wheels can be controlled from one side.
  • CE approved.
  • Manufactured: Horsens, Denmark
  • On board 24V interchangeable battery for tabletop movements
