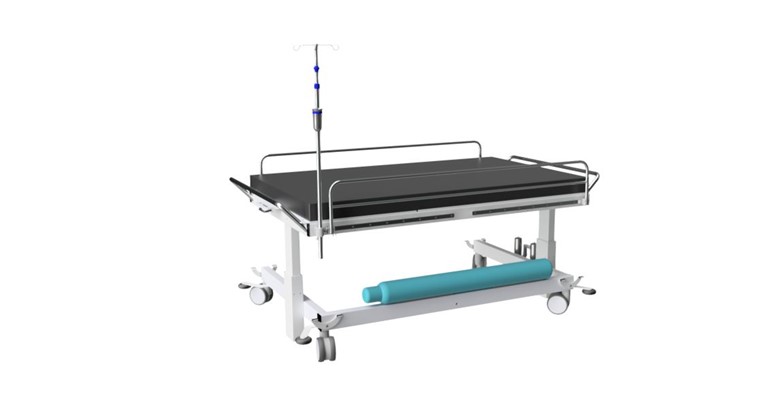

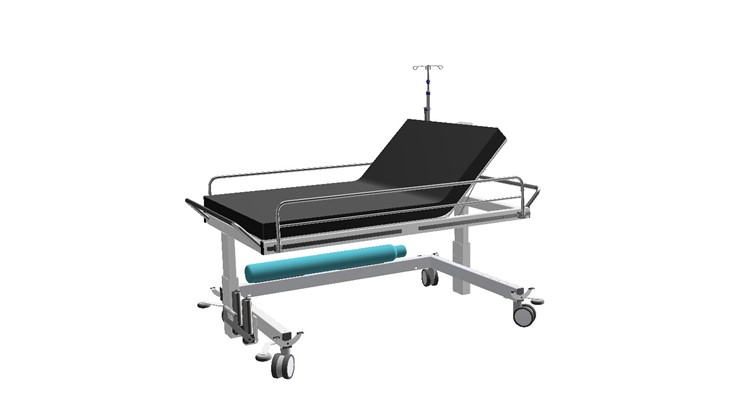

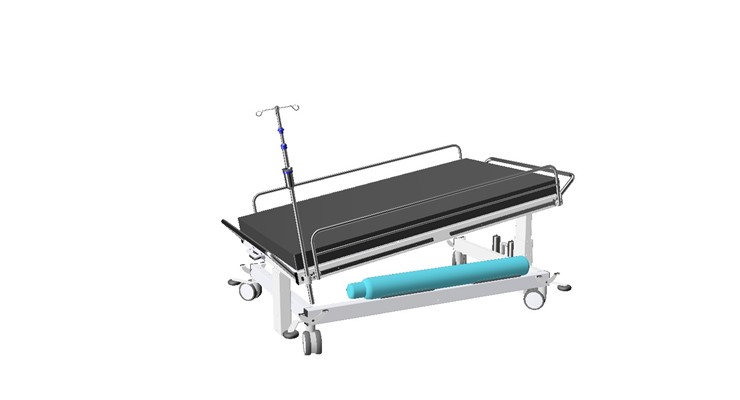

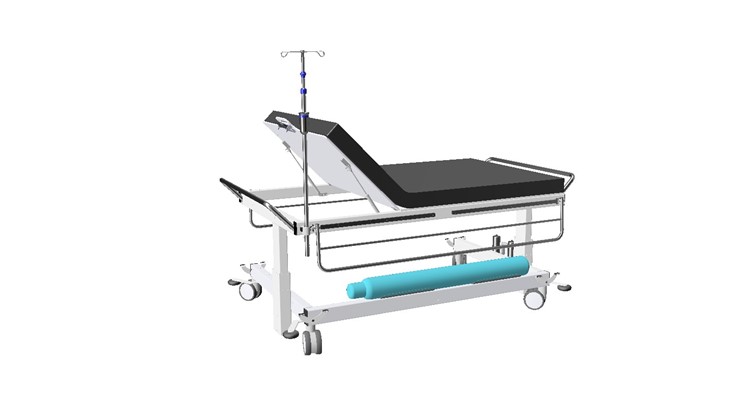

Gaby 02-1200 X-Ray Trauma Table MRI 3T
Intend of use

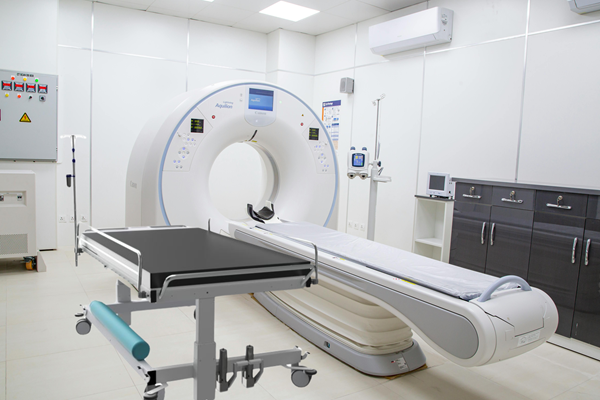

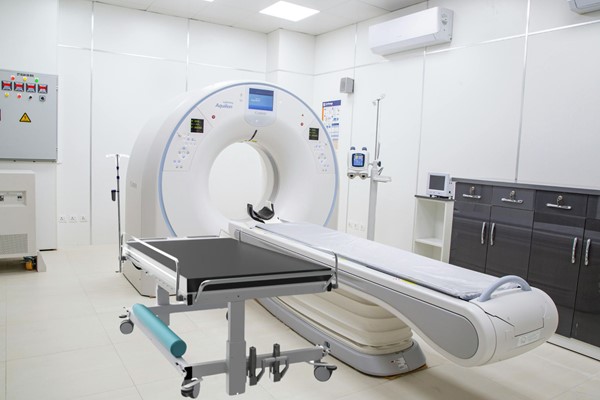

Gaby 02-1200 table is designed to receive a heavier patient in the trauma room for the first examinations and then be transported to the X-ray, CT or MRI scanner departments for further examination.
Technical data
- Tabletop 200x120cm
- X-Ray transparent area 188x110cm

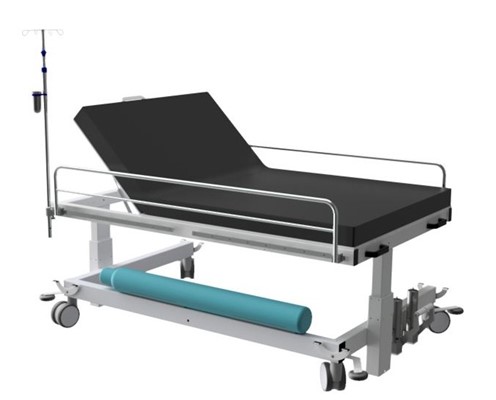

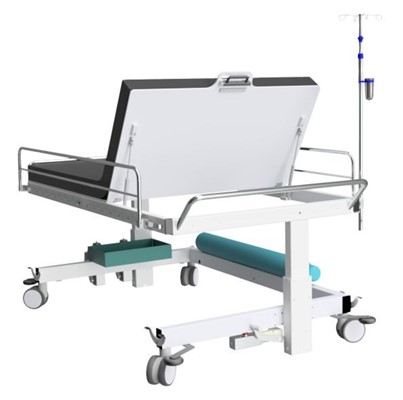

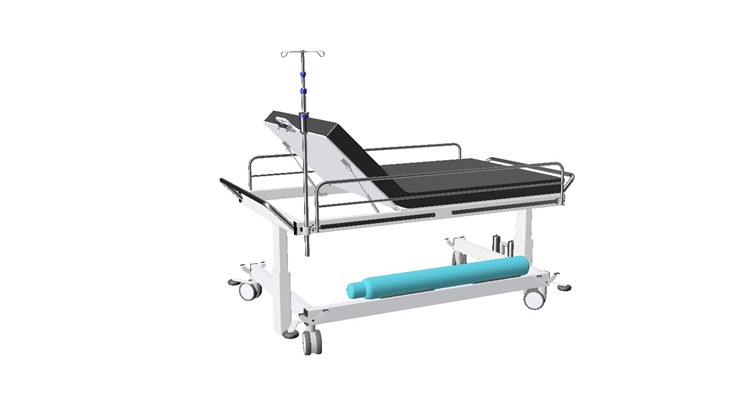

- Hydraulic controlled adjustable backrest
- Hydraulic adjustable working height 66-96cm
- Hydraulic adjustable Trendelenburg ±9°

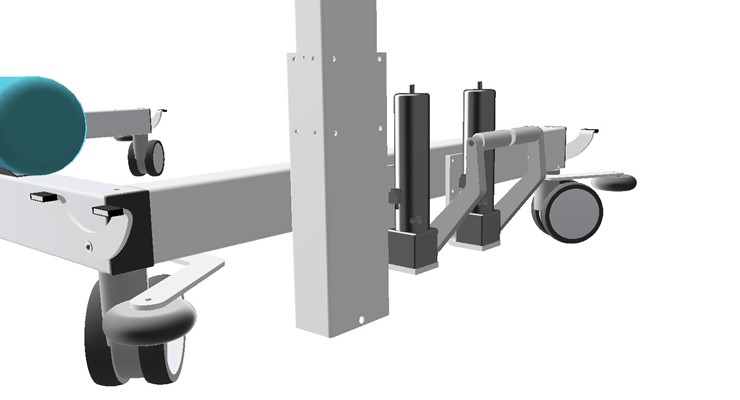

- 150mm wheels with central locking swivel, total brake and direction lock
- Side wheels for wall protection
- Frame painted off-white
- Max patient load 350Kg
- MRI 3T compatible
- Made in Denmark
- CE marked

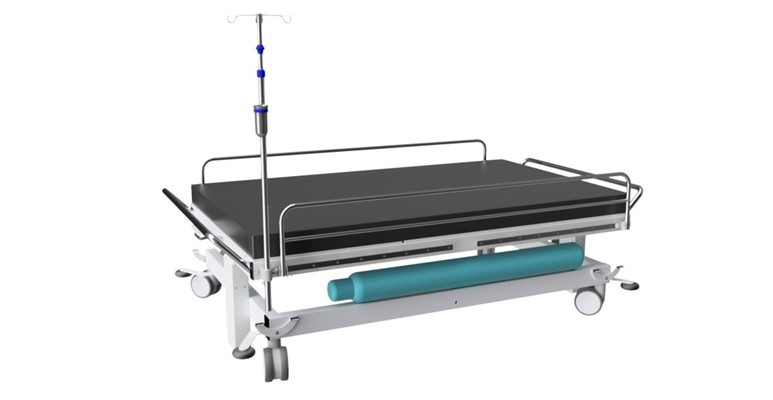

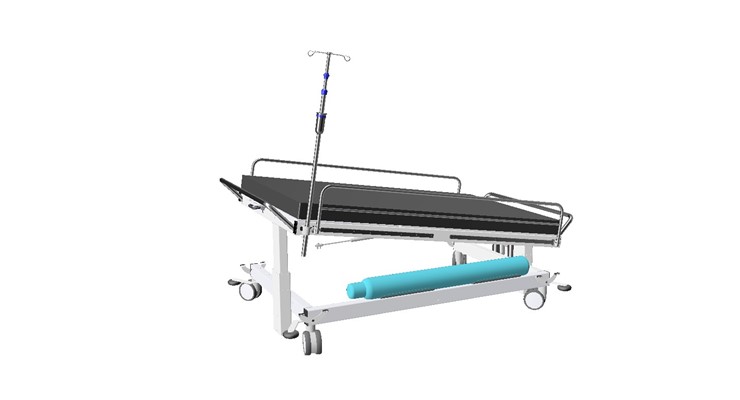

The table has an X-ray transparent tabletop made of fiber and the table frame is made of MRI compatible material. The table has hydraulically adjustable backrest as well as working height and Trendelenburg. There are 4 large double wheels with directional lock, free and total brake, all wheels can be controlled from both sides of the table with a brake pedal in each corner. To protect the walls, side wheels can be mounted. The table has side rails where various accessories can be mounted, including foldable bed rails, IV pole stand etc. On the lower frame, bottle holder and patient clothes basket can be mounted. The table is made of anti-magnetic stainless-steel material and fiber tabletop.
