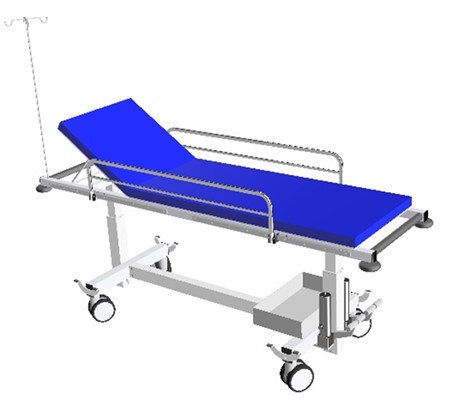

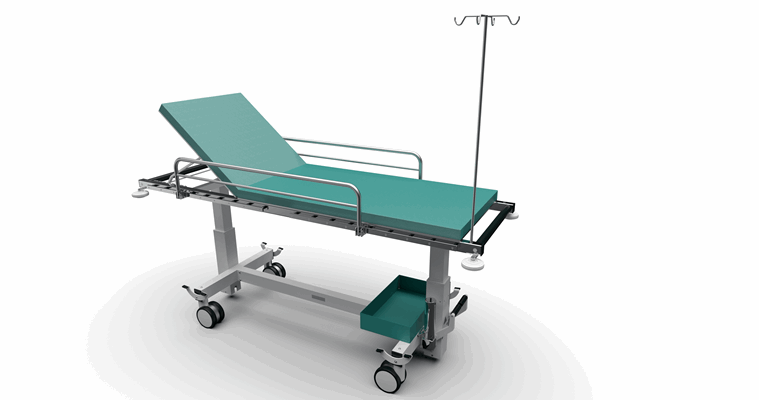

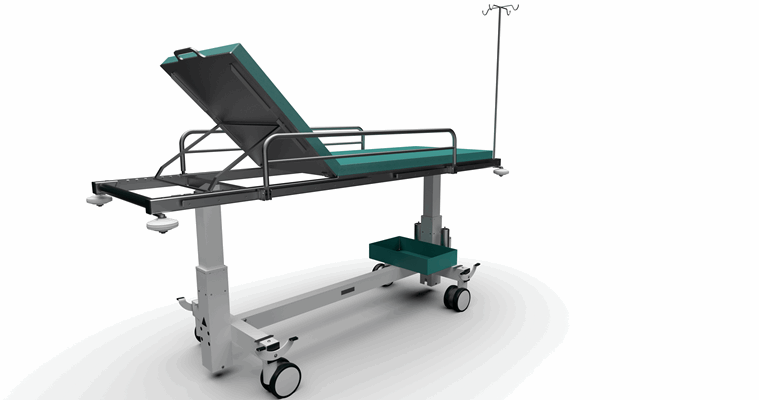

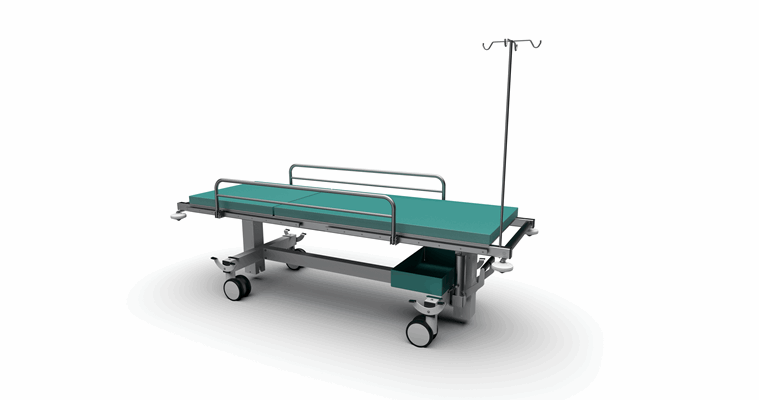

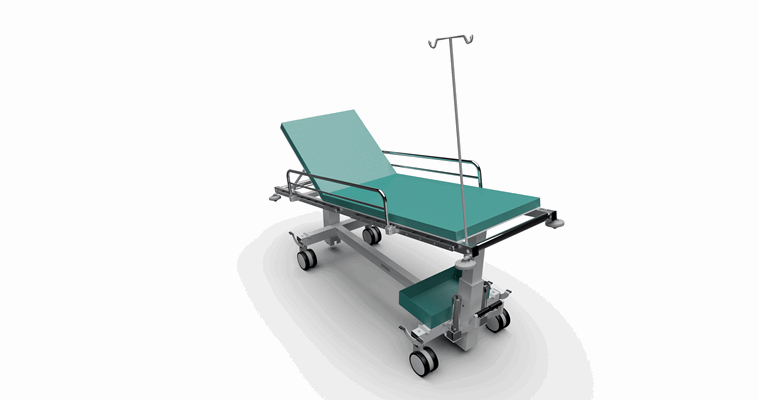

Garp 00 MRI SS 7T
Intend of use
The intended use of the Garp 00 MRI SS 7T table is to bring a patient to the MRI scanner and slide the patient up onto the MRI scanner table, with entrance from the side.
![](/media/1634/1_garp00-high.jpg?width:500&height=400&mode=crop)
![](/media/1635/2_garp00-low.jpg?width:500&height=400&mode=crop)
![](/media/1636/3-garp00-trendelenburg1.jpg?width:500&height=400&mode=crop)
![](/media/1629/3-5_garp00-trendelenburg2-low-back.jpg?width:500&height=400&mode=crop)
![](/media/1630/3-8_garp00-trendelenburg1-low-back.jpg?width:500&height=400&mode=crop)
![](/media/1631/4_garp00-trendelenburg2.jpg?width:500&height=400&mode=crop)
![](/media/1632/5_garp00-low-low-back.jpg?width:500&height=400&mode=crop)
![](/media/1633/6_garp00-high-low-back.jpg?width:500&height=400&mode=crop)
Technical data
- Dimension: 230 x 70 x 60/95cm
- Maximum load: 250 kg.
- Total weight ex. load: 75kg
- Tabletop:
Antimagnetic fiber material, off white 220 x 65cm.
Adjustable backrest - Materials frame: Stainless steel, Aluminum.
- Surface: Powder painted off white
- Movement:
Hydraulic adjusted working height from 60 to 95 cm.
Trendelenburg +/- 13 dg - Wheels & Brakes: 150mm wheels with triple-function foot brake, total lock, free- and direction lock, all wheels can be controlled from one side.
- CE approved.
- Manufactured: Horsens, Denmark
