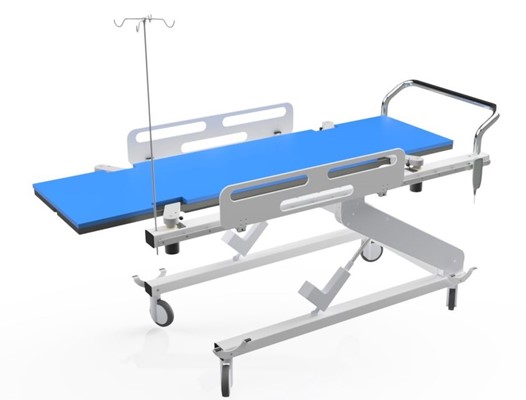

LiGo 000 CT Trolly EE
Intend of use
The intended use of the LiGo 000 CT EE table is to bring a patient to the CT scanner and to lift the trolley tabletop including the patient up onto the CT scanner table, with entrance from the end.
![](/media/1551/1ligo-00-high.jpg?width:500&height=400&mode=crop)
![](/media/1552/2ligo-00-low.jpg?width:500&height=400&mode=crop)
![](/media/1553/3ligo-00-high.jpg?width:500&height=400&mode=crop)
![](/media/1758/ligo-400-00-ct-angio-171023-07-5.jpg?width:500&height=400&mode=crop)
![](/media/1759/ligo-400-00-ct-angio-171023-06.jpg?width:500&height=400&mode=crop)
![](/media/1760/ligo-400-00-ct-angio-171023-02-6.jpg?width:500&height=400&mode=crop)
![](/media/1761/ligo-400-00-ct-angio-171023-03.jpg?width:500&height=400&mode=crop)
Technical data
- Dimension: 220 x 80 x 60/95cm
- Maximum load: 250 kg.
- Total weight ex. load: 75 kg.
- Tabletop:
Carbon fiber 200 x 56 cm.
Fully portable transfer board - Motorized adjustable working heigth 65 to 95cm
- Materials frame: Stainless steel, Aluminium, Steel.
- Surface: Powder painted off white
- Power: Battery powered (fully portable), 230V
- Capacity: 50 times up and down with a fully charged battery and 100kg load
- Wheels & Brakes: 150mm wheels with triple-function foot brake, total lock, free- and direction lock, all wheels can be controlled from one side.
- CE approved.
- Manufactured: Horsens, Denmark
