Gaby 02-760 MRI Multi Table
Intend of use

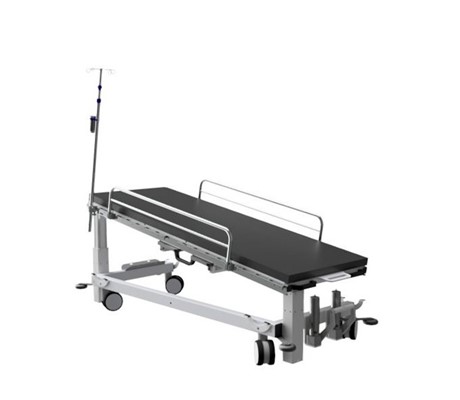

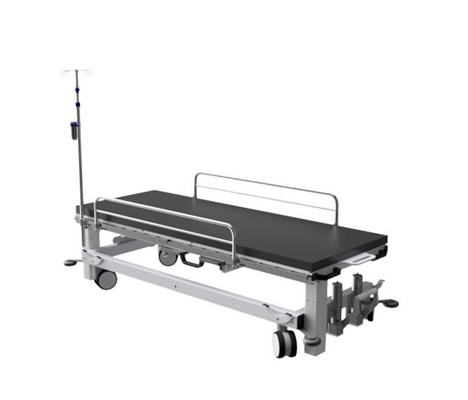

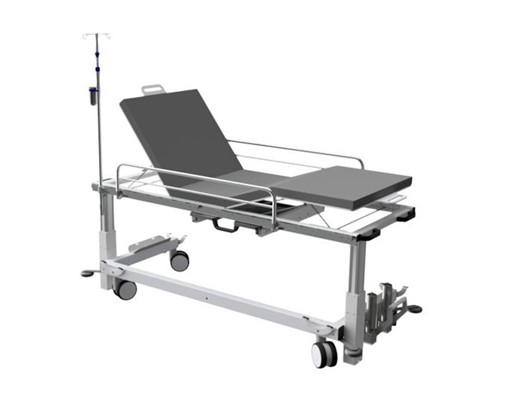

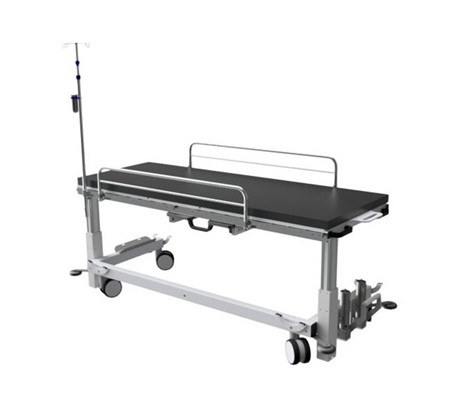

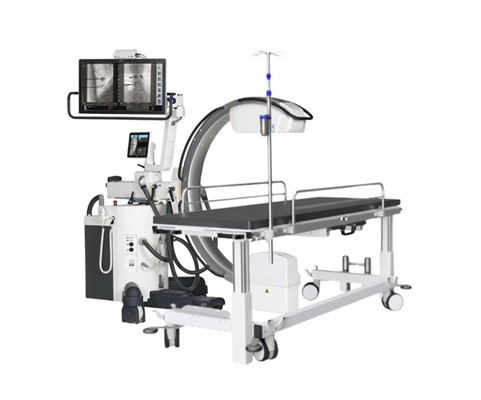

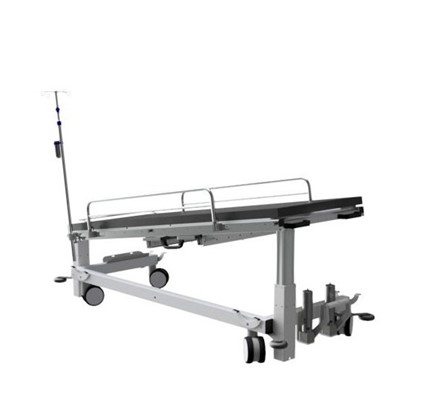

Gaby 02-760 Multi Table is designed to receive the patient in the trauma room for the first examinations and then transport the patient to the X-ray, CT or MRI scanner departments for further examination. The table has an X-ray transparent tabletop made of fiber and the table frame is made of MRI compatible material. The table has adjustable backrest and a hydraulic adjustable working height and Trendelenburg. There are 4 large double wheels with directional lock, free and total brake, all wheels can be controlled from both sides of the table with a brake pedal in each corner. Below the tabletop a moveable detector drawer can be mounted.
Technical data
- Table frame outer dimensions 216x81cm
- Tabletop 200x760cm
- X-Ray transparent area 187x68cm
- Equipment rails on both side
- Hydraulic adjustable working height 66-96cm
- Hydraulic adjustable Trendelenburg +- 9dg
- 2 transport handle in both head and foot end
- 150mm wheels with central locking swivel, total brake and direction lock
- Frame painted off-white
- Table weight without patient 130kg
- Max patient load 350kg
- MRI 3T compatible
- Made in Denmark CE marked
