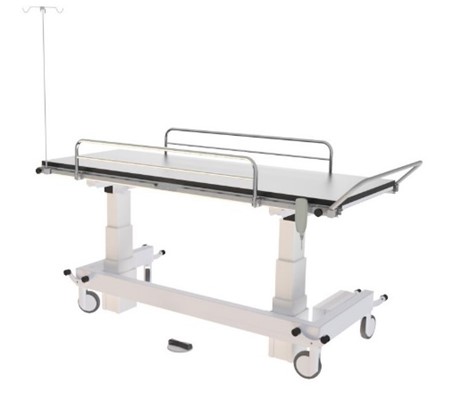

Grace 650 MET X-ray table

Intend of use

Grace 650 MET X-ray table is as a multi-examination table, is designed to be used in endoscopy, colonoscopy, radiology, and pain clinics. The table has battery-powered adjustable working height and floating tabletop 200x65cm.

Options

  • Built-in adjustable backrest
  • Folding Safety Side guards
  • Drip stand / IV Pole
  • Mattress 3-5-8-10cm and 5 cm with side handles
  • Positioning handles
  • Paper roll holder
  • Carbon fiber arm support
  • Additional back-up battery with wall charger
  • Foot switch for control of working height and releasing the floating tabletop
  • Handle for releasing of the floating tabletop
  • Moveable detector drawer below tabletop 35x46/46x35cm
  • Ask for other options

Technical data

  • Dimension: 200 x 65 x 60/100cm
  • Maximum load: 250 kg.
  • Total weight ex. load: 135 kg.
  • Tabletop:
    Floating X-ray transparent tabletop with electromagnetic locks
    X-ray transparent area: 197 x 50 cm
    Longitudinal movement +/- 35cm. with magnet brake
    Transversal movement +/- 15cm. with magnet brake
  • Materials frame: Steel
  • Surface: Powder painted off white
  • Movement:
    Motorized adjusted working height from 60 to 100 cm.
    Trendelenburg +/- 10 dg
  • Power: Battery powered (fully portable) One extra battery and a charger
  • Capacity: 70 times up and down with a fully charged battery and 100kg load
  • On board 24V interchangeable battery for tabletop movements
  • Wheels & Brakes: 150mm wheels with triple-function foot brake, total lock, free- and direction lock, all wheels can be controlled from one side.
  • CE approved.
  • Manufactured: Horsens, Denmark
