Treat 00
Intend of use
Treat 00 is designed as a versatile, mobile, and radiolucent treatment stretcher — built for hospitals, clinics, emergency care, endoscopy units and day-surgery environments.It offers quiet motorized movements, excellent patient access and a fully cable-free workflow through battery power. Developed and manufactured in Denmark, Treat 00 brings a calm, stable platform to clinical work where efficiency and mobility matter.
Technical data
- Tabletop 200x70cm with 8cm mattress
- X-Ray transparent backrest and leg support
- Battery supplied motorized
- Adjustable working height 50-90cm
- Trendelenburg -+12dg.
- Adjustable backrest 0-70dg.
- Adjustable legsupport 0-60dg.
- Kneeflex 0-30dg. = option
- Side rails for Equipments on both sides
- Foldable armrest and side rails on backrest
- IV Pole with four hooks
- Wheel lock Foot hanger on both sides, wheels with total lock, free and direction lock
- Transport handles at the foot and head end
- Linak foot switch for adjustable working height and tabletop horizontal/vertical
- Linak Col50 system with Wall charger and extra battery, Battery capacity at least 70 times up/down with 100load
- Frame painted off-white
- Patient weight up to 250kg
- Made in Denmark and CE marked
Radiolucent, Spacious and Ready for Imaging
With a 200 × 70 cm tabletop, Treat 00 provides a generous surface that allows the clinician full access from all sides.
Its X-ray transparent backrest and leg section enable bedside imaging with minimal patient repositioning — improving safety and streamlining workflow.
Fully Battery-Powered Flexibility
Treat 00 delivers smooth motorized adjustments across all key functions:
Height adjustment: 50–90 cm
Trendelenburg: ±12°

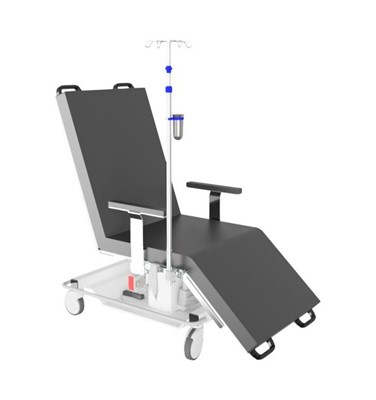

Backrest: 0–70°
Leg support: 60–0°
Knee-flex: 0–30° (optional)
Powered by the reliable LINAK COL50 system (column, motor and battery), the stretcher offers strong lift performance and long runtime.
One battery provides at least 70 lift cycles with 100 kg load, and a wall charger plus spare battery ensure uninterrupted use — all without cables on the floor.
Practical Features for Daily Clinical Use
Side rails for accessories on both sides
Foldable armrests
Optional foldable side rails on backrest
IV pole with four hooks
Wheel-lock foot pedals accessible from both sides
Large castors with total lock, free and directional lock
Transport handles at head and foot end
8 cm comfort mattress
Off-white powder-coated frame
Patient weight capacity: 250 kg
Made in Denmark – CE marked
A Reliable, Mobile and Imaging-Ready Treatment Solution
Treat 00 supports treatment, positioning, transport and imaging in one unified platform.
It is built for clinicians who need mobility, stability and silent power — and for patients who benefit from comfort and secure handling.
