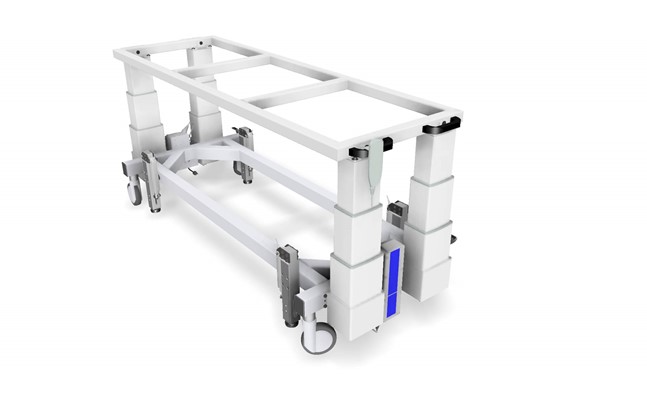

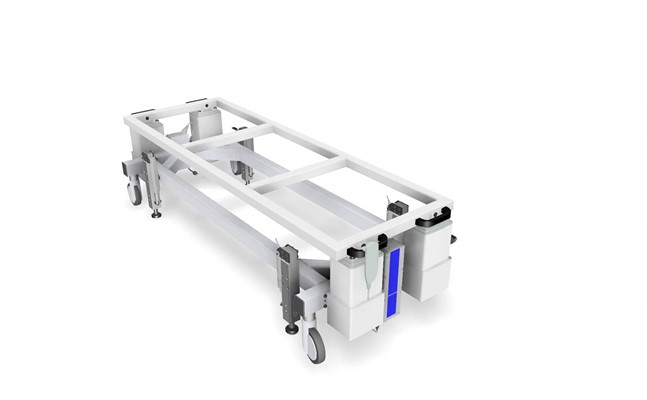

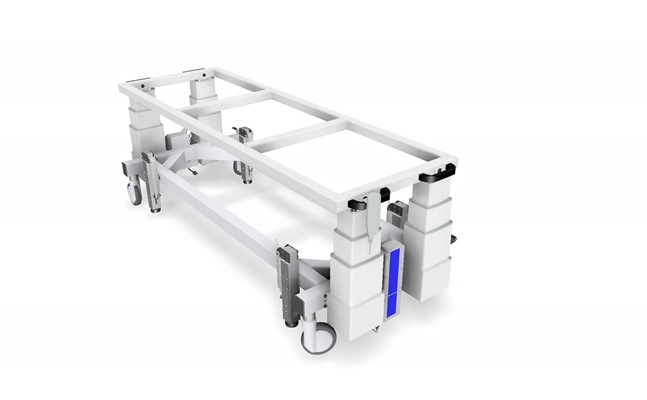

TBI 00 table
Intend of use
The intended use of the TBI 00 table is for TBI treatment. Motorized up/down and parking movement.
![](/media/1598/1_tbi-00-table-high.jpg?width:500&height=400&mode=crop)
![](/media/1594/2_tbi-00-table-high-park.jpg?width:500&height=400&mode=crop)
![](/media/1595/3_tbi-00-table-low-park.jpg?width:500&height=400&mode=crop)
![](/media/1596/4_tbi-00-table-mid-high.jpg?width:500&height=400&mode=crop)
![](/media/1597/5_tbi-00-table-mid-high-park.jpg?width:500&height=400&mode=crop)
Technical data
- Dimension: 200 x 85 x 55/95cm
- Maximum load: 250 kg.
- Total weight ex. load: 150 kg.
- Materials frame: Stainless steel, Aluminium, Steel)
- Surface: Powder painted off white
- Movement:
Motorized adjusted working height from 55 to 95 cm - Power: Battery powered (fully portable), 230V
- Capacity: 50 times up and down with a fully charged battery and 100kg load.
- Wheels & Brakes: 150mm wheels with triple-function foot brake, total lock, free- and direction lock, all wheels can be controlled from one side.
- CE approved.
- Manufactured: Horsens, Denmark
