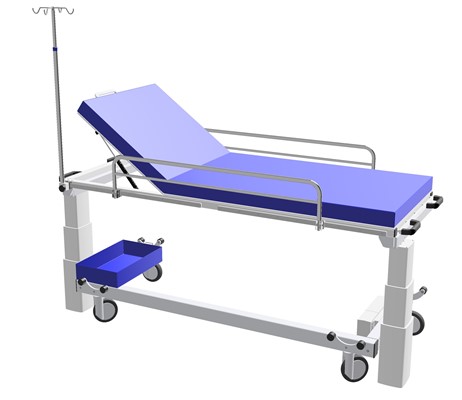

Gaby 00 Trauma and X-ray table
Intend of use
The intended use of the Hydraulic Gaby 00 Trauma and X-ray table is to bring a trauma patient to X-ray examination.
![](/media/1627/1gaby05-high.jpg?width:500&height=400&mode=crop)
![](/media/1628/2gaby05-low.jpg?width:500&height=400&mode=crop)
![](/media/1623/3gaby05-low-back-down.jpg?width:500&height=400&mode=crop)
![](/media/1624/4gaby05-trend1-back-down.jpg?width:500&height=400&mode=crop)
![](/media/1625/5gaby05-trend2-back-down.jpg?width:500&height=400&mode=crop)
![](/media/1626/6gaby05-trend2-back-up.jpg?width:500&height=400&mode=crop)
Technical data
- Dimension: 200 x 76 x 50/90cm
- Maximum load: 250 kg.
- Total weight ex. load: 75 kg.
- Tabletop:
Fiber tabletop 200 x 76 cm. - Materials frame: Stainless steel, Aluminium, Steel)
- Surface: Powder painted off white
- Movement:
Hydraulic adjusted working height from 56 to 90 cm.
Trendelenburg +/- 12 dg - Wheels & Brakes: 150mm wheels with triple-function foot brake, total lock, free- and direction lock, all wheels can be controlled from one side.
- CE approved.
- Manufactured: Horsens, Denmark
